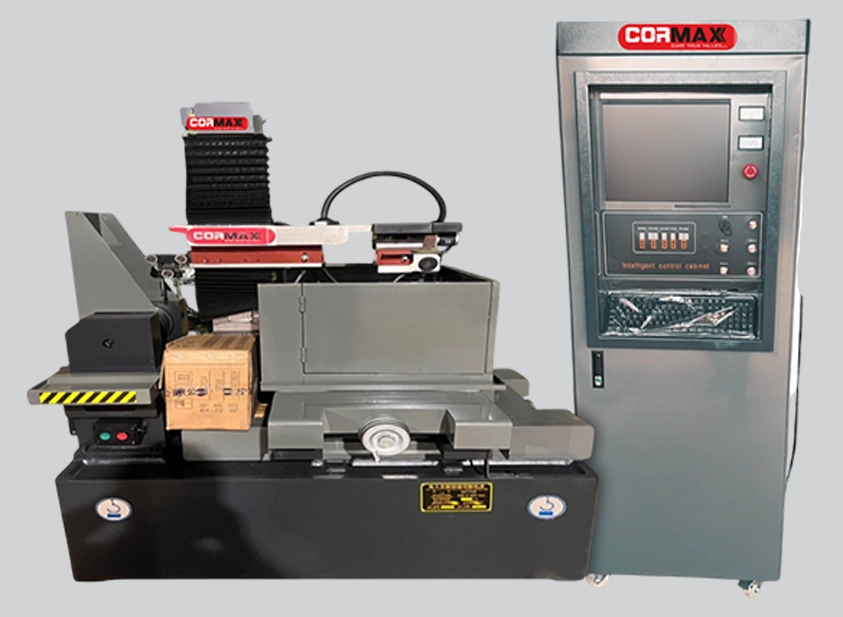

High Precision Wire Cut Machine
CNC Wire Cut Machine
Accurate Profiles. Reliable Production.
CORMAX CNC wire cut machines combine precision table movement, simultaneous X, Y, U and V axis control, and a stable machine structure. The CMX-ECO range supports accurate cutting, consistent repeatability, and operator-friendly production for dies, tools, and precision components.
Key Features
- Simultaneous X, Y, U & V control
- Precision X & Y ball screws
- Fine-pitch U & V axis screws
- CNC pulse generator
- Gap-short recovery
- Integrated coolant system
Model Comparison
Technical Specifications
| Specification | Unit | 4535 S/M | 5545 S/M |
|---|---|---|---|
| Machine Capacity | |||
| Table Size (X × Y) | mm | 700 × 440 | 780 × 540 |
| Table Travel (X × Y) | mm | 450 × 350 | 550 × 450 |
| Maximum Z-Axis Travel | mm | 500 | 500 |
| Maximum Workpiece Weight | kg | 400 | 500 |
| Cutting Performance | |||
| Maximum Cutting Angle (Optional) | degrees | ±3° (15° / 30° optional) | |
| Positional Accuracy | mm | 0.015 / 300 | |
| Repeatability | mm | 0.01 | |
| Wire Moving Speed | m/s | 11.5 | |
| Cutting Speed – Standard | mm/min | 120–140 | |
| Cutting Speed – Maximum | mm/min | 160–180 | |
| Wire Diameter | mm | 0.12–0.25 | |
| Power & Machine | |||
| Single-Phase Supply | — | 220 V / 50 Hz | |
| Three-Phase Supply | — | 415 V / 50 Hz (2.0 kW) | |
| Dimensions (L × W × H) | mm | 1,300 × 1,200 × 1,400 | 1,600 × 1,300 × 1,500 |
| Net Weight | kg | 1,200 | 1,350 |
