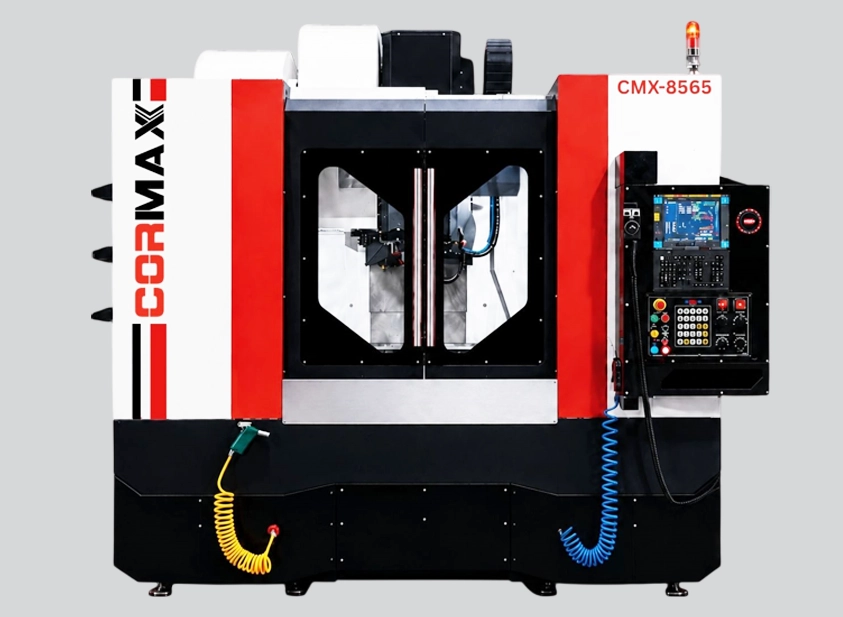

Vertical Machining Center
CMX-8565
Greater Capacity. Consistent Accuracy.
The CORMAX CMX-8565 provides increased Y-axis capacity and a robust motion system for stable, precise machining. Built for productive daily operation, it combines a capable spindle, reliable automatic tool changing, and a pneumatic Z-axis balancer.
Key Features
- 850 × 650 mm working travel
- Rigid structure for stable cutting
- Z-axis pneumatic balancer
- 24-tool arm-type ATC
- BT 40 / BBT-40 spindle
- High table load capacity
Technical Specifications
| Specification | Unit | CMX-8565 |
|---|---|---|
| Travel & Table | ||
| X-Axis Travel | mm | 850 |
| Y-Axis Travel | mm | 650 |
| Z-Axis Travel | mm | 510 |
| Spindle Nose to Table Surface | mm | 120–630 |
| Table Size | mm | 1,020 × 550 |
| Maximum Table Load | kg | 500 |
| Table T-Slot | mm | 5 × 18 |
| Spindle & Feed | ||
| Spindle Speed | rpm | 8,000 / 10,000 |
| Mitsubishi Motor Power | kW | 7.5–11 / 11–15 |
| Fanuc Motor Power | kW | 7.5–11 / 11–15 |
| Spindle Taper | — | BT 40 / BBT-40 |
| Rapid Traverse Rate | m/min | X & Y: 24 / Z: 20 |
| Cutting Feed Rate | m/min | 10 |
| Tooling & Accuracy | ||
| Tool Capacity | nos. | 24 |
| Changer Type (Standard) | — | Arm Type |
| Maximum Tool Weight | kg | 7 |
| Positioning Accuracy | mm | ±0.010 |
| Positioning Repeatability | mm | ±0.007 |
| Machine & Linear Motion | ||
| Machine Weight with ATC (Standard Machine), Approx. | kg | 5,800 |
| Power Requirement | kVA | 25 |
| X-Axis LM / Ball Screw (P × D) | mm | 45 / 40 × 10 |
| Y-Axis LM / Ball Screw (P × D) | mm | 45 / 40 × 10 |
| Z-Axis LM / Ball Screw (P × D) | mm | 45 / 40 × 10 |
| Dimensions (L × W × H) | mm | 2,360 × 2,600 × 2,790 |
| Z-Axis Support | — | Pneumatic Balancer |
