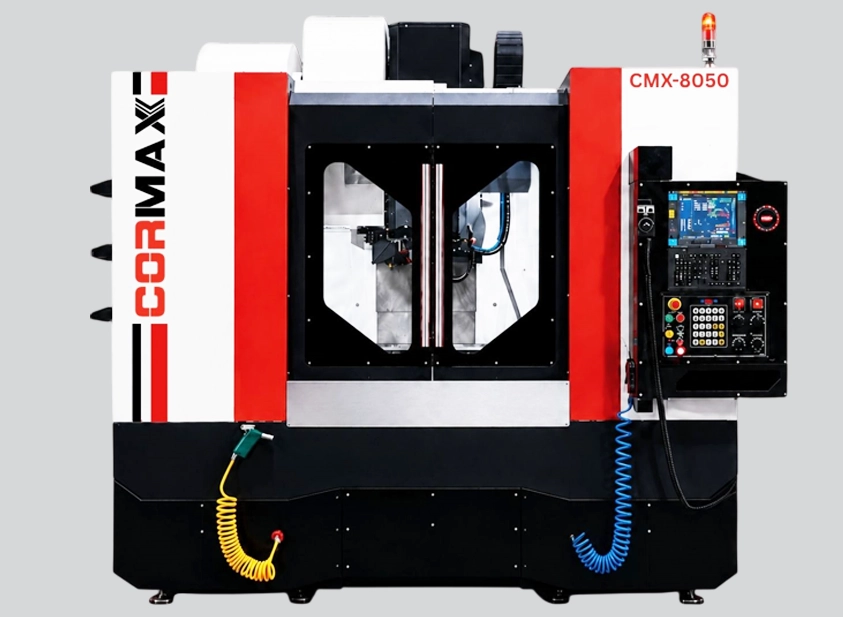

Vertical Machining Center
CMX-8050
Expanded Travel. Reliable Precision.
The CORMAX CMX-8050 combines extended X-axis travel with a rigid, production-ready platform for accurate and efficient machining. Its responsive spindle, dependable tool-changing system, and operator-focused design support consistent performance across demanding shop-floor applications.
Key Features
- 800 mm X-axis travel
- Rigid structure for stable cutting
- High-performance spindle system
- 24-tool arm-type ATC
- Precision motion and repeatability
- Efficient chip management
Technical Specifications
| Specification | Unit | CMX-8050 |
|---|---|---|
| Travel & Table | ||
| X-Axis Travel | mm | 800 |
| Y-Axis Travel | mm | 500 |
| Z-Axis Travel | mm | 510 |
| Spindle Nose to Table Surface | mm | 120–630 |
| Table Size | mm | 1,000 × 500 |
| Maximum Table Load | kg | 500 |
| Table T-Slot | mm | 5 × 16 × 95 |
| Spindle & Feed | ||
| Spindle Speed | rpm | 8,000 / 10,000 |
| Mitsubishi Motor Power | kW | 7.5–11 |
| Fanuc Motor Power | kW | 7.5–11 |
| Spindle Taper | — | BT 40 / BBT-40 |
| Rapid Traverse Rate | m/min | X & Y: 24 / Z: 20 |
| Cutting Feed Rate | m/min | 10 |
| Tooling & Accuracy | ||
| Tool Capacity | nos. | 24 |
| Changer Type (Standard) | — | Arm Type |
| Maximum Tool Weight | kg | 7 |
| Positioning Accuracy | mm | ±0.010 |
| Positioning Repeatability | mm | ±0.007 |
| Machine & Linear Motion | ||
| Machine Weight with ATC (Standard Machine), Approx. | kg | 5,200 |
| Power Requirement | kVA | 20 |
| X-Axis LM / Ball Screw (P × D) | mm | 35 / 32 × 10 |
| Y-Axis LM / Ball Screw (P × D) | mm | 35 / 32 × 10 |
| Z-Axis LM / Ball Screw (P × D) | mm | 35 / 32 × 10 |
| Dimensions (L × W × H) | mm | 2,300 × 2,150 × 2,660 |
