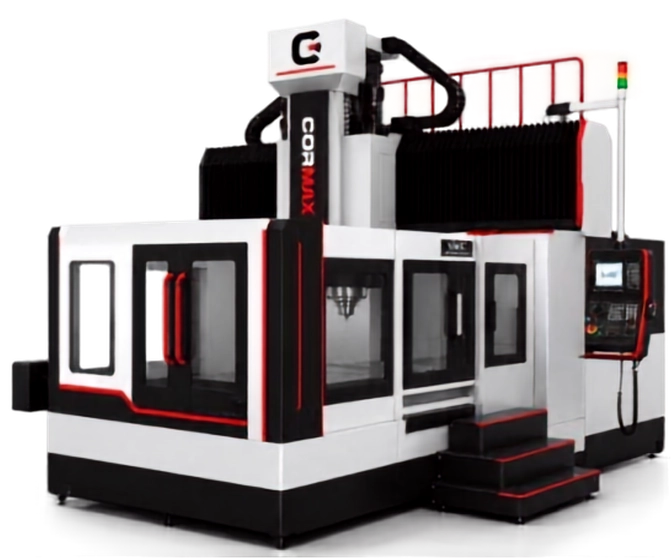

Double Column Vertical Machining Center
CMX 2050
Heavy-Duty Machining. Rigidity, Accuracy & Stability.
The CORMAX CMX 2050 Double Column Vertical Machining Center is designed for heavy-duty machining with high rigidity, accuracy and stability. It is ideal for mold, aerospace, automotive, energy and general engineering industries.
Standard Features
- Mitsubishi control system
- Rigid Double Column Structure
- LM Guideways / Box ways on X/Y axes
- High Precision Ball Screw
- High Speed Spindle
- Automatic Lubrication System
- Coolant System
- Heat Exchanger for Electrical Cabinet
- LED Work Light
- Full Enclosure with Safety Interlock
Technical Specifications
| Specification | Unit | CMX 2050 |
|---|---|---|
| Travels | ||
| X-Axis Travel | mm | 2000 |
| Y-Axis Travel | mm | 1250 |
| Z-Axis Travel | mm | 700 |
| Spindle Nose to Table | mm | 150 |
| Distance Between Two Columns | mm | 1200 |
| Table | ||
| Table Length | mm | 2000 |
| Table Width | mm | 900 |
| Maximum Table Load | kg | 2500 |
| T-Slot (Width & No.) | — | 6 × 18 |
| T-Slot Center Distance | mm | 125 |
| Spindle | ||
| Spindle Taper | — | BT 40 |
| Spindle Speed (Standard) | rpm | 8000 |
| Drive System | — | Belt Drive |
| Spindle Motor Power (FANUC) | kW | 15 |
| Spindle Motor Power (SIEMENS) | kW | 16 |
| Feed | ||
| Rapid on X Axis | m/min | 15 |
| Rapid on Y Axis | m/min | 20 |
| Rapid on Z Axis | m/min | 20 |
| Cutting Feed | mm/min | 10 |
| ATC (Automatic Tool Changer) | ||
| Tool Capacity (Standard) | — | 24 |
| Maximum Tool Diameter (Full / Empty) | mm | 89/125 |
| Maximum Tool Length | mm | 300 |
| Maximum Tool Weight | kg | 7 |
| Tool Change Time (T-T) | sec | 2.5 |
| Tool Change Time (C-C) | sec | 6.0 |
| Accuracy & Machine Weight | ||
| Positioning Accuracy | mm | ±0.02 |
| Repeatability | mm | ±0.01 |
| Machine Weight (Approx.) | ton | 14.5 |
