Vertical Machining Center
CMX-10565
Heavy-Duty Capacity. Precise Control.

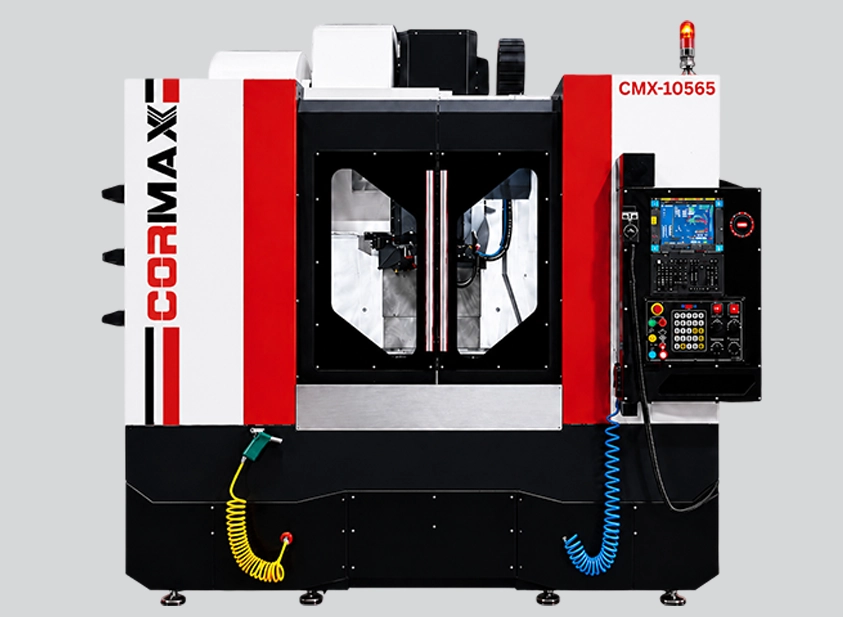

The CORMAX CMX-10565 is designed for larger components and demanding production work, pairing generous axis travel with a 1,000 kg table capacity. Its rigid linear-motion system and pneumatic Z-axis balancer promote stable, repeatable machining.
Key Features
- 1,050 × 650 mm working travel
- 1,000 kg maximum table load
- Z-axis pneumatic balancer
- 24-tool arm-type ATC
- BT 40 / BBT-40 spindle
- Rigid 45 mm linear-motion system
Technical Specifications
| Specification | Unit | CMX-10565 |
|---|---|---|
| Travel & Table | ||
| X-Axis Travel | mm | 1,050 |
| Y-Axis Travel | mm | 650 |
| Z-Axis Travel | mm | 610 |
| Spindle Nose to Table Surface | mm | 120–730 |
| Table Size | mm | 1,250 × 600 |
| Maximum Table Load | kg | 1,000 |
| Table T-Slot | mm | 5 × 18 |
| Spindle & Feed | ||
| Spindle Speed | rpm | 8,000 / 10,000 |
| Mitsubishi Motor Power | kW | 11–15 |
| Fanuc Motor Power | kW | 11–15 |
| Spindle Taper | — | BT 40 / BBT-40 |
| Rapid Traverse Rate | m/min | X & Y: 24 / Z: 20 |
| Cutting Feed Rate | m/min | 10 |
| Tooling & Accuracy | ||
| Tool Capacity | nos. | 24 |
| Changer Type (Standard) | — | Arm Type |
| Maximum Tool Weight | kg | 7 |
| Positioning Accuracy | mm | ±0.010 |
| Positioning Repeatability | mm | ±0.007 |
| Machine & Linear Motion | ||
| Machine Weight with ATC (Standard Machine), Approx. | kg | 6,500 |
| Power Requirement | kVA | 25 |
| X-Axis LM / Ball Screw (P × D) | mm | 45 / 40 × 10 |
| Y-Axis LM / Ball Screw (P × D) | mm | 45 / 40 × 10 |
| Z-Axis LM / Ball Screw (P × D) | mm | 45 / 40 × 10 |
| Dimensions (L × W × H) | mm | 2,850 × 2,600 × 2,960 |
| Z-Axis Support | — | Pneumatic Balancer |
